Hot pipe Side Pipe $210.00

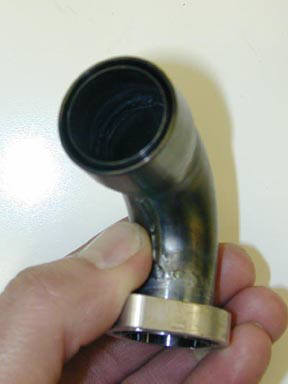

This pipe is designed with a huge tapered head pipe. This gives big gains at mid range and top end. It also incorporates a flex joint where the head pipe meets the main body. This joint virtually eliminates pipe cracking. This allows us to make the main body out of very light gauge material and this keeps the weight of the pipe under 12 ounces. (This is very light for a steel pipe; by comparison aluminum pipes usually come in around 8 ounces. We don't make aluminum pipes because I have never seen one to equal the power of a steel pipe. The resonant pulse waves get absorbed by the softer aluminum.) This pipe is available in either 90, 100, and 106 degrees. wrap to center (WTC) or deep vee. All these pipes perform identically, there is no loss or change in performance between the different routing configurations. In the photographs, note the head pipe. You can see the taper in it and also note the coupling that the flex slips into. It has inner and outer walls, it is the same way on the body of the pipe. This keeps exhaust leakage around the flex to an absolute minimum.

3" SILENCER $60.00

The silencer comes in four lengths, 3" is standard, special order is 4", 5" and 6". These silencers are rebuildable and very quiet. They don't effect power at all. The 4" silencer is $65, the 5" silencer is $70 and the 6" silencer is $75

Silencer extensions are available, up to a 4" long extension is $35, add $5 an inch for anything over 4" up to 9". Over 9" long the extension is a special quote, please email us for a price.

Click for full size image
Click for full size image
Click for full size image
Click for full size image
DEEP VEE PIPE INFO
WTC PIPE INFO
BLACK JACK / SHOCKWAVE PIPE INFO
HORIZONTAL PIPE INFO
WRAP TO FLUSH PIPE INFO

HOT PIPE KITS

OUTBOARD PIPE INFO
Click for full size image

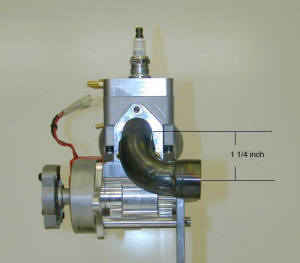

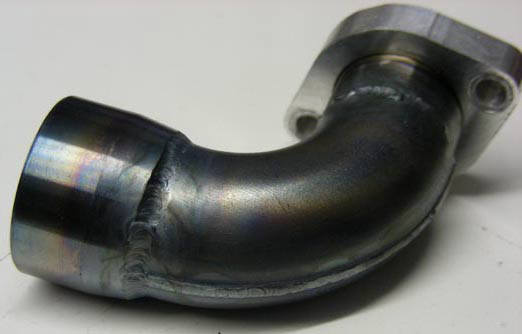

STANDARD HEAD PIPES  $105 each
CLICK TO ENLARGE
CLICK TO ENLARGE
CLICK TO ENLARGE
CLICK HERE FOR SIDE PIPE DIMENSIONS
NEW, DROP DOWN HEADER $150
Click here for more information
90 DEGREE DROP DOWN PIPE
